Cage Material: PC / PSU / PPSU
Rack Material: Stainless Steel 304
Usage: Mouse / Rat / guinea pig / Rabbit
customization: Available
Ventilation System
Rital Ventilation System is engineered to uphold both rigorous biological safety standards for laboratory animals and researchers, while also meeting compliance requirements for safety, animal welfare, and ergonomic design. Its development involves meticulous consideration of airflow patterns, consistent air distribution, animal-level air velocities, and differential pressure dynamics. Through meticulous CFD analysis, the cage design is optimized to ensure even air distribution throughout, eliminating any potential dead zones. Moreover, the system undergoes comprehensive testing across various parameters to guarantee optimal biological safety and animal well-being. These parameters include assessments of air velocity at the animal level, sound levels, cage vibrations, detection of air leakage through silicon gaskets via smoke tests, and evaluation of smoke recovery capabilities.

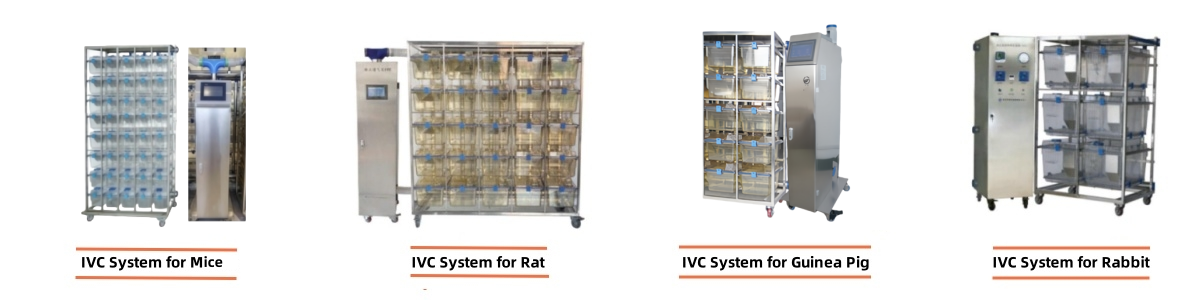

IVC System for Different Animals
Rodent IVC Housing Component
One set IVC System for laboratory animals include one Air Handling Unit, one Stainless Steel Rack or two and Cages.
Air Supply Unit:
| Model/Size | A2/340×600×1580mm |
| Ergonomic | Made of Stainless Steel frame with slant touch screen, meet the ergonomics design |
Adjustable | The air return duct can be adjusted according to the height of the rack |
Intelligent | Intelligent control module, automatic alarm system for temperature,humidity and pressure |
Computer-controlled | Can transfer the lVC data to computer & app, and modify the data to each lVC through the computer & app |

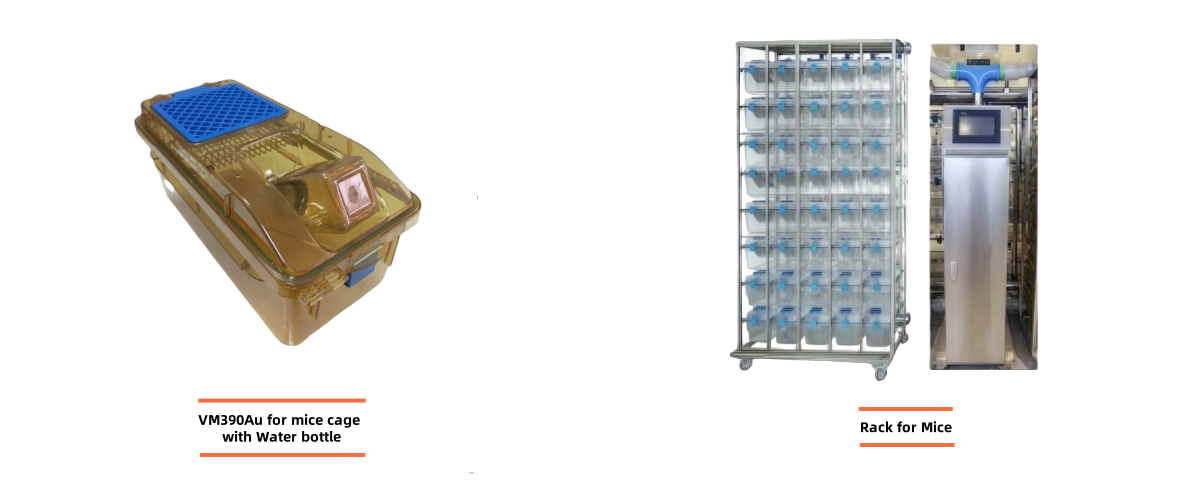

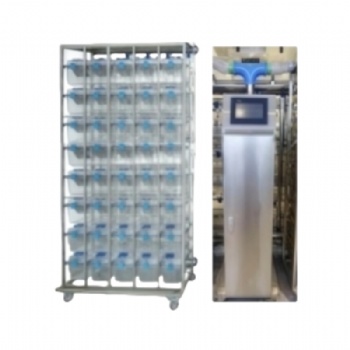

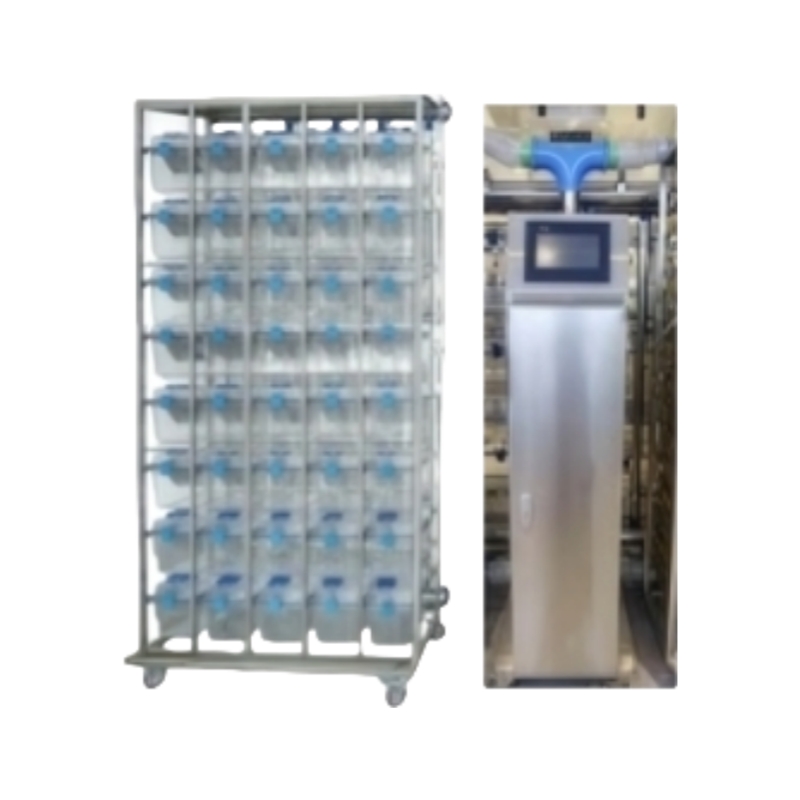

Ventilated Cage With Rack for Mice:
| Model: VM390AU | Model: VM390AU -S-40-R |
| Cage size: 390×180×180mm | Rack size:1005×500×1980mm (W×D×H) |
| Water bottle: 300ml | Material made: Stainless steel |
| Materials: Polycarbonaly &/or Polysulfone | Quantity of cage in one rack: 40cages (5cages/layer×8 layers) |
| non-toxic, anti-bite, Free-resistance to acid corrosion,durable and autoclavable,meets current international rules and guidelines | Coordinates on the rack to record the location of the cage accurately |
| There is a tight connection between cage and rack with good sealing, In common environment, it can keep the air cleanliness of cage inside as SPF level | The air supply and outlet hole of the rack take a stamping rotary clamping structure,which is convenient for disassembly, cleaning and disinfection |

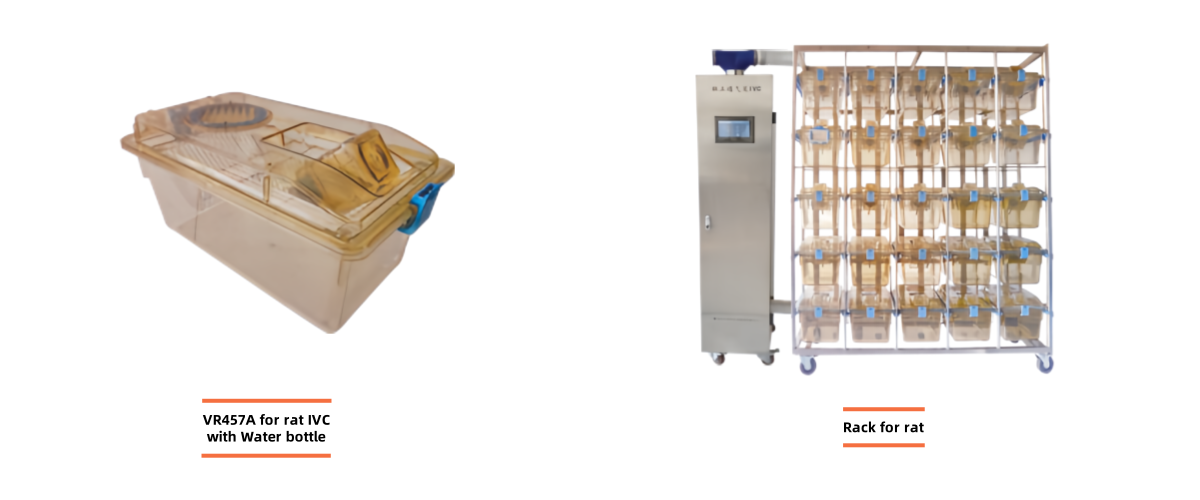

Ventilated Cage With Rack for Rat:
| Model: VR457A | Model: VR457A -S-42-R |
| Cage size: 457×267×220mm | Rack size:2011×587×2040mm (W×D×H) |
| Water bottle: 500ml | Material made: 304 Stainless steel |
| Materials: Polycarbonaly | Quantity of cage in one rack: 7cages /layer×6 layers=42cages (W×H) |
| non-toxic, anti-bite, Free-resistance to acid corrosion,durable and autoclavable,meets current international rules and guidelines | Coordinates on the rack to record the location of the cage accurately |
| There is a tight connection between cage and rack with good sealing, In common environment, it can keep the air cleanliness of cage inside as SPF level | The air supply and outlet hole of the rack take a stamping rotary clamping structure,which is convenient for disassembly, cleaning and disinfection |

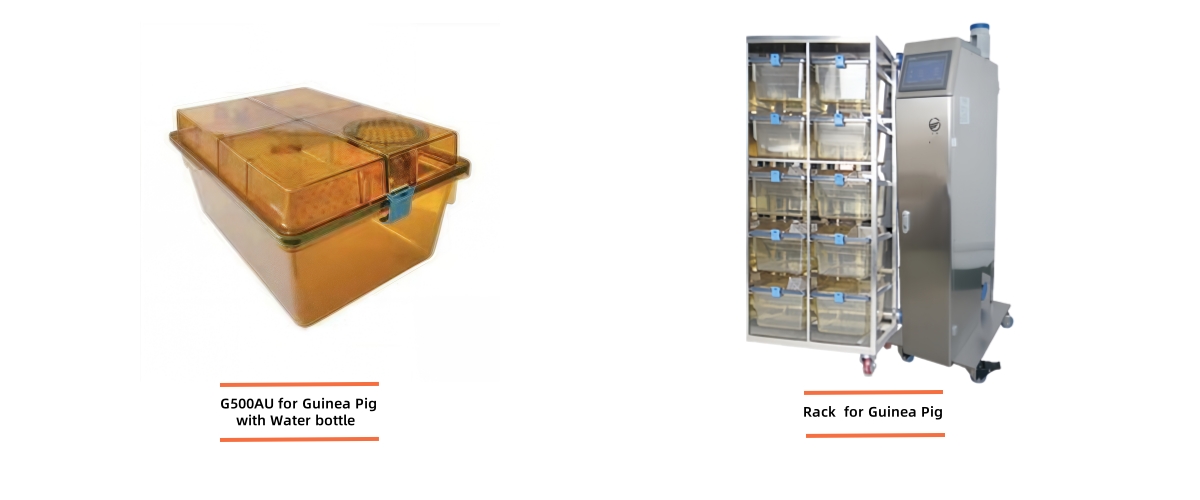

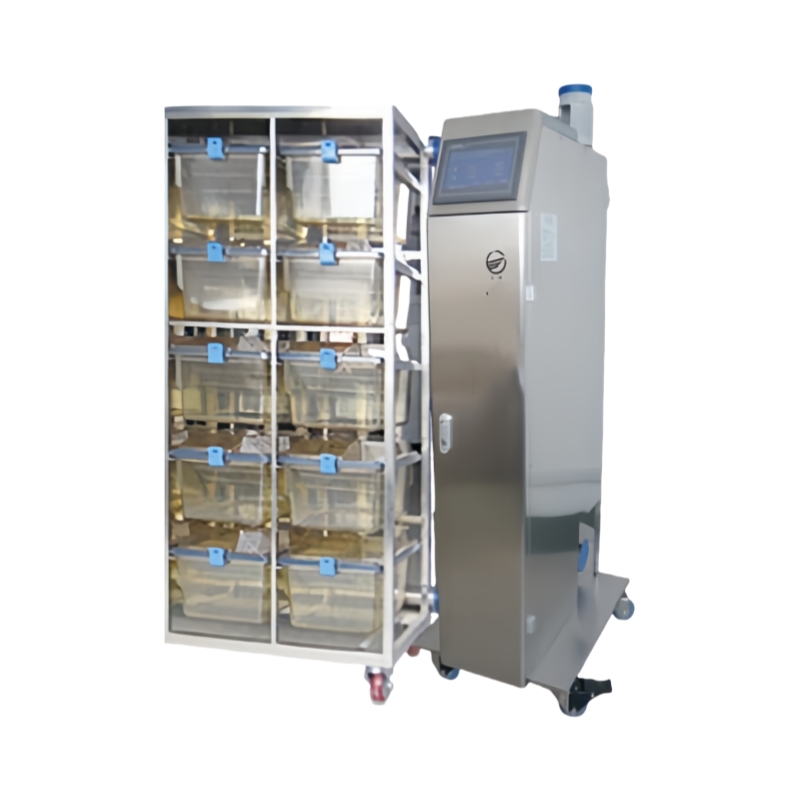

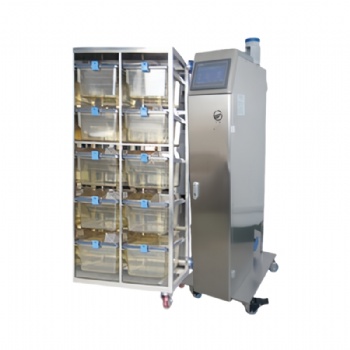

Ventilated Cage With Rack for Guinea Pig:
| Model: G500AU | Model: G500AU -S-10-R |
| Cage size: 500×360×280mm | Rack size: 775×620×1830mm (W×D×H) |
| Water bottle: 500ml | Material made: Stainless steel |
| Materials: Polycarbonaly | Quantity of cage in one rack: 2cages×5 layers=10cages |
| non-toxic, anti-bite, Free-resistance to acid corrosion,durable and autoclavable,meets current international rules and guidelines | Equipped with four universal wheels. The wheels are made of high temperature resistant PU material. Suitable for easy movement and two of the wheels are with brake casters. |
| There is a tight connection between cage and rack with good sealing, In common environment, it can keep the air cleanliness of cage inside as SPF level | The air supply and outlet hole of the rack take a stamping rotary clamping structure,which is convenient for disassembly, cleaning and disinfection |

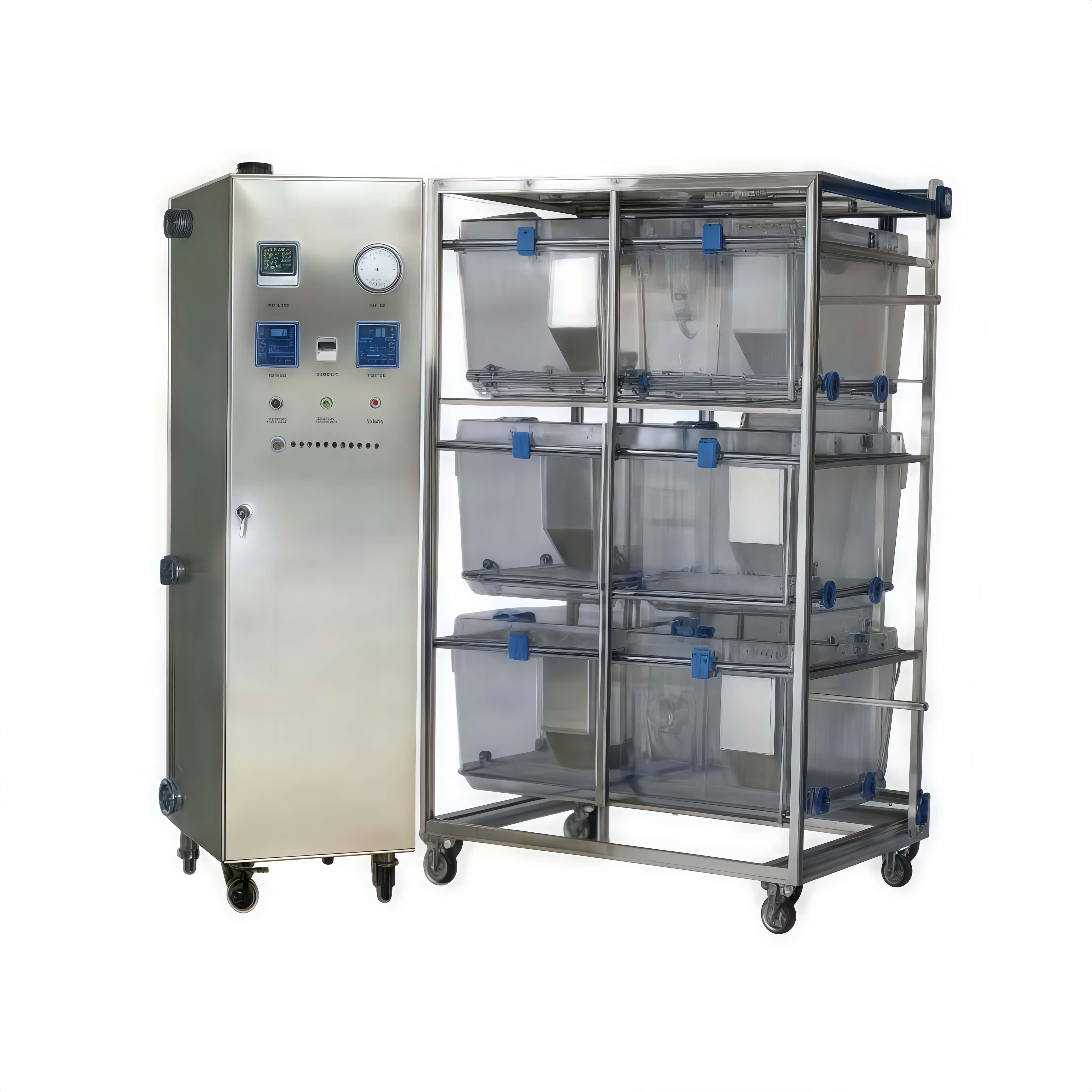

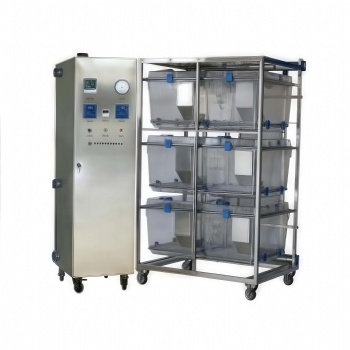

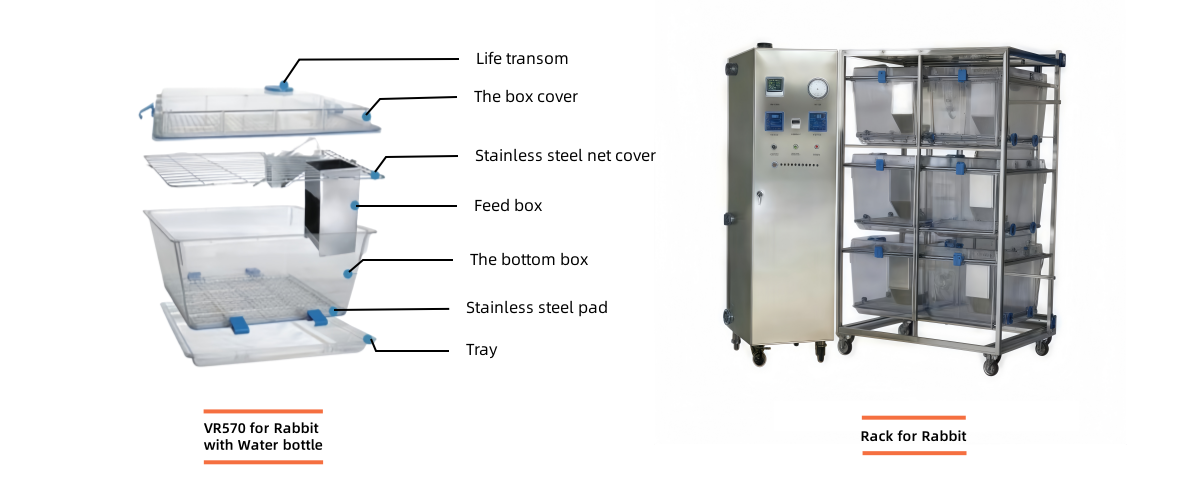

Ventilated Cage With Rack for Rabbit:
| Model: VR570 | Model: RBC-6 |
| Cage size: 470×570×450mm | Rack size:1030×620×1685mm (L×D×H) |
| Water bottle:700ml | Material made:Stainless steel |
| Feed box:feed box: made of SUS304 stainless steel, has a large capacity, and one feeding can last for 2 - 3 days | Quantity of cage in one rack: 3ayers×2=6 cage or customized according to customer requirements |
| Materials: Polycarbonate | The air supply and exhaust ducts are detachable, which is convenient for cleaning |
| good transparency, anti-bite, Free-resistance to acid corrosion,durable and autoclavable,meets current international rules and guidelines | It is equipped with 4-inch polyurethane PU universal wheels with brake devices, which is convenient for moving |
Popular Sizes Recommend
Here comes some Popular Sizes of Rital Mice, Rats,Guinea Pigs and Rabbit Cage for customers to choose. Can also be customized to customer requirements.
Customers' Feedback
Rital Laboratory Mouse, Rat, Guinea Pig and Rabbit Breeding Cages IVC System are well received by the customers. Here comes some rave reviews from our customers.Welcome to contact us to get the links where these reviews come from. More welcome to contact us for the product details.
