Material: Stainless Stell
Color: Silver
Usage: Sterilize Cages for Mice / Rats / Guinea Pigs

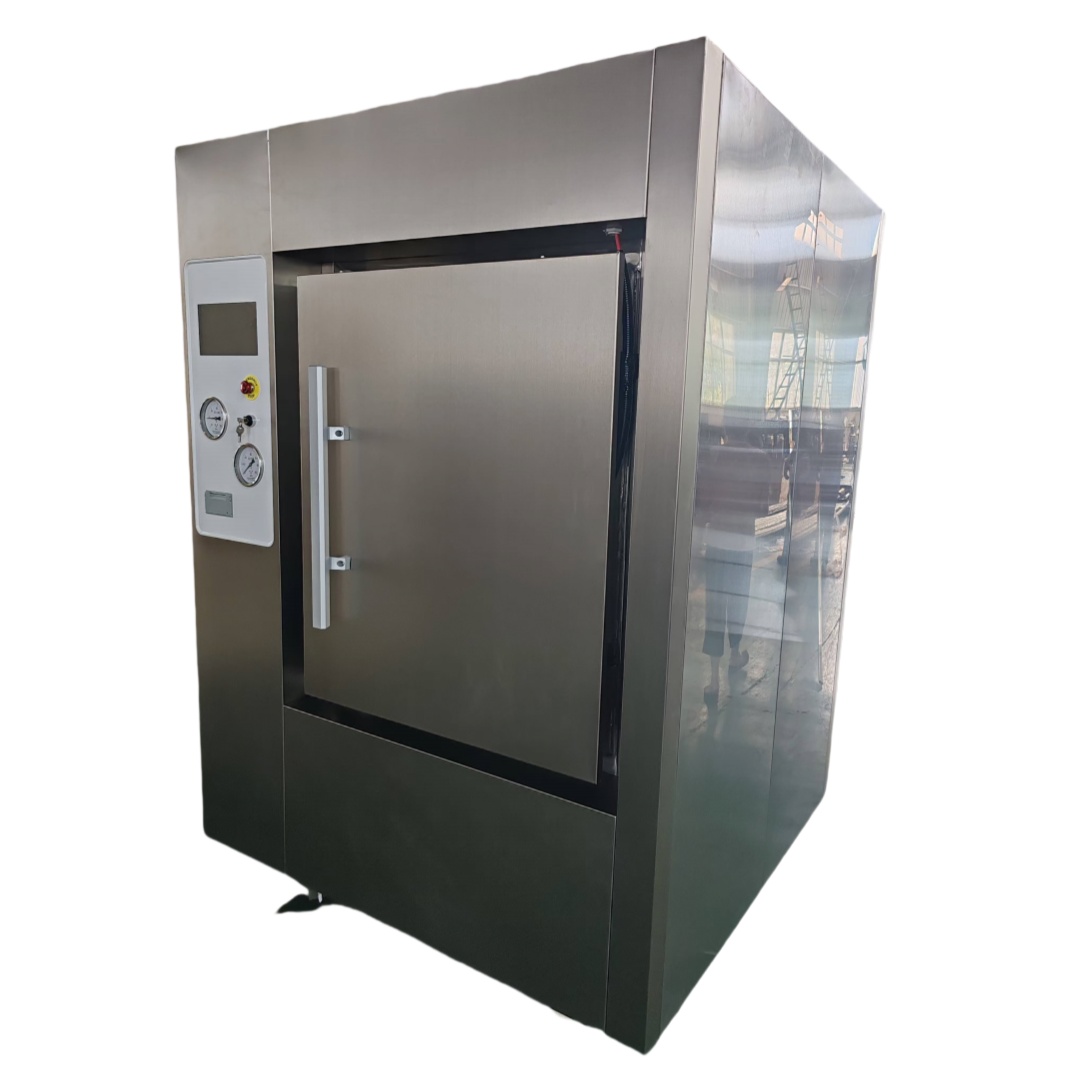

The SXM Series Pulsating Vacuum Steam Sterilizer is engineered to deliver precise, reliable sterilization for medical instruments, surgical tools, and heat-resistant materials. Combining advanced vacuum pulsation technology with robust stainless steel construction, this Class I pressure vessel ensures optimal steam penetration, rapid drying, and compliance with international safety standards. Ideal for hospitals, laboratories, and industrial facilities, it streamlines sterilization workflows while maintaining the highest levels of efficiency and safety.
Precision Sterilization with Pulsating Vacuum
Multi-Stage Air Removal: Three vacuum pulsations eliminate over 99% of air pockets, preventing cold spots and ensuring uniform steam distribution.
Accelerated Drying: Vacuum-assisted drying reduces moisture retention, achieving fast turnaround times for critical instruments.
Durable, Hygienic Design
Stainless Steel Chamber: Constructed from corrosion-resistant 06Cr19Ni10/022Cr17Ni12Mo2 stainless steel for long-term durability.
Seamless Sealing: Compressed-air-activated silicone gasket ensures airtight operation, preventing steam leakage even at high pressures.
Smart Automation & Control
Programmable Logic Controller (PLC): Eight preset sterilization programs (e.g., fabric, instruments, liquids, BD testing) with customizable parameters.
Interactive Touchscreen: Real-time monitoring of temperature, pressure, and cycle progress. Data logging and print capabilities for compliance tracking.
Safety Interlocks: Automatically locks doors during operation and prevents access until pressure drops to safe levels (≤0.027 MPa).
Energy-Efficient Performance
Dual-Chamber Preheating: Reduces cycle time by preheating the sterilization chamber via steam-jacketed walls.
Pressure & Temperature Safeguards: Auto-shutoff prevents over-pressurization, protecting both equipment and operators.
Compliance & Reliability
Certified Safety: Meets GB4793.1-2007, GB/T18268.1-2010, and GB8599-2008 standards for electrical safety and steam quality.
EMC Compatibility: Stable operation in environments with high-frequency medical devices.
| Model | SXM-0.6JS | SXM-0.8JS | SXM-1.2JS |
|---|---|---|---|
| Capacity | 0.6 m³ | 0.8 m³ | 1.2 m³ |
| Dimensions (L×W×H) | 1500×1360×1950 mm | 1800×1360×1950 mm | 1750×1440×1950 mm |
| Max Temperature | 138°C | 138°C | 138°C |
| Pressure Range | -0.1 to 0.3 MPa | -0.1 to 0.3 MPa | -0.1 to 0.3 MPa |
| Power Supply | 380V AC, 50Hz | 380V AC, 50Hz | 380V AC, 50Hz |
| Steam Pressure | 0.3–0.6 MPa | 0.3–0.6 MPa | 0.3–0.6 MPa |
| Weight | 1,400 kg | 1,600 kg | 1,800 kg |
Healthcare: Sterilize surgical instruments, linen packs, and rigid containers.
Pharmaceuticals: Process heat-resistant glassware and liquid solutions (≤55°C).
Research Labs: Decontaminate tools and equipment in biosafety environments.
Annual Inspections: Mandatory pressure vessel checks by certified authorities.
Routine Care: Monthly cleaning of filters, seals, and chamber; lubrication of door mechanisms every six months.
10-Year Lifespan: Extended durability with annual inspections post-warranty.
Packaging: Weatherproof wooden crates with internal shock absorption.
Site Requirements:
Concrete flooring (load capacity ≥800 kg/m²).
Dedicated electrical and compressed air lines (0.4–0.6 MPa).
Training & Commissioning: On-site setup and operator training available.
Why Choose Rital SXM Series?
Proven Performance: Trusted by leading medical and industrial facilities worldwide.
Custom Solutions: Tailored programs for specialized sterilization needs.
Dedicated Support: 24/7 technical assistance and spare parts availability.
